Rental Modules
Outdoor IP65 rating. high refresh 3840hz- 7680hz optional
High brightness indoor 600 cd.700cd optional. Outdoor 5000cd,6000cd,7000cd optional . Support customization
Impactful events demand excellent visual experiences that help to inform and inspire the crowd. Event displays must not only look great, but be built to hold up to the rigors of life on the road. Giantbull LED video walls are designed with this in mind.
H
- Commodity name： Rental Modules
Keyword:
Rental Modules
- PRODUCT DESCRIPTION
-
*RENTAL MODULE SEPCIFICATIONS
Model/Type Indoor Outdoor P2.604 P2.976 P3.91 P2.604 P2.976 P3.91 P4.81 Pixel Configuration 1R1G1B Pixel Pitch 2.64mm 2.967mm 3.91mm 2.604mm 2.976mm 3.91mm 4.81mm Pixel Density (Dots/m²) 147456 112896 65536 147456 112896 65536 43264 Lamp size SMD1515 SMD2121 SMD2121 SMD1415 SMD1415 SMD1921 SMD1921 Structural Features LED and Driver Integrated Design Driving Method(Constant Current Drive) 1/32s 1/42s 1/32s 1/32s 1/21s 1/16s 1/13s Module Size 250*250mm Module Resolution (Dots) 96*96=9216 84*84=7056 64*64=4096 96*96=9216 84*84=7056 64*64=4096 52*52=2704 Box material 500*500mm Die-cast aluminum case/500*1000mm Die-cast aluminum case White Balance Brightness 600cd/m²-800cd/m² 4500cd/m²-7000cd/m² Brightness Uniformity ≥96% Optimal Viewing Distance 3-100m 3-100m 4-100m 3-100m 3-100m 4-100m 5-100m Optimal Viewing Angle Horizontal viewing Angle 140±10°，

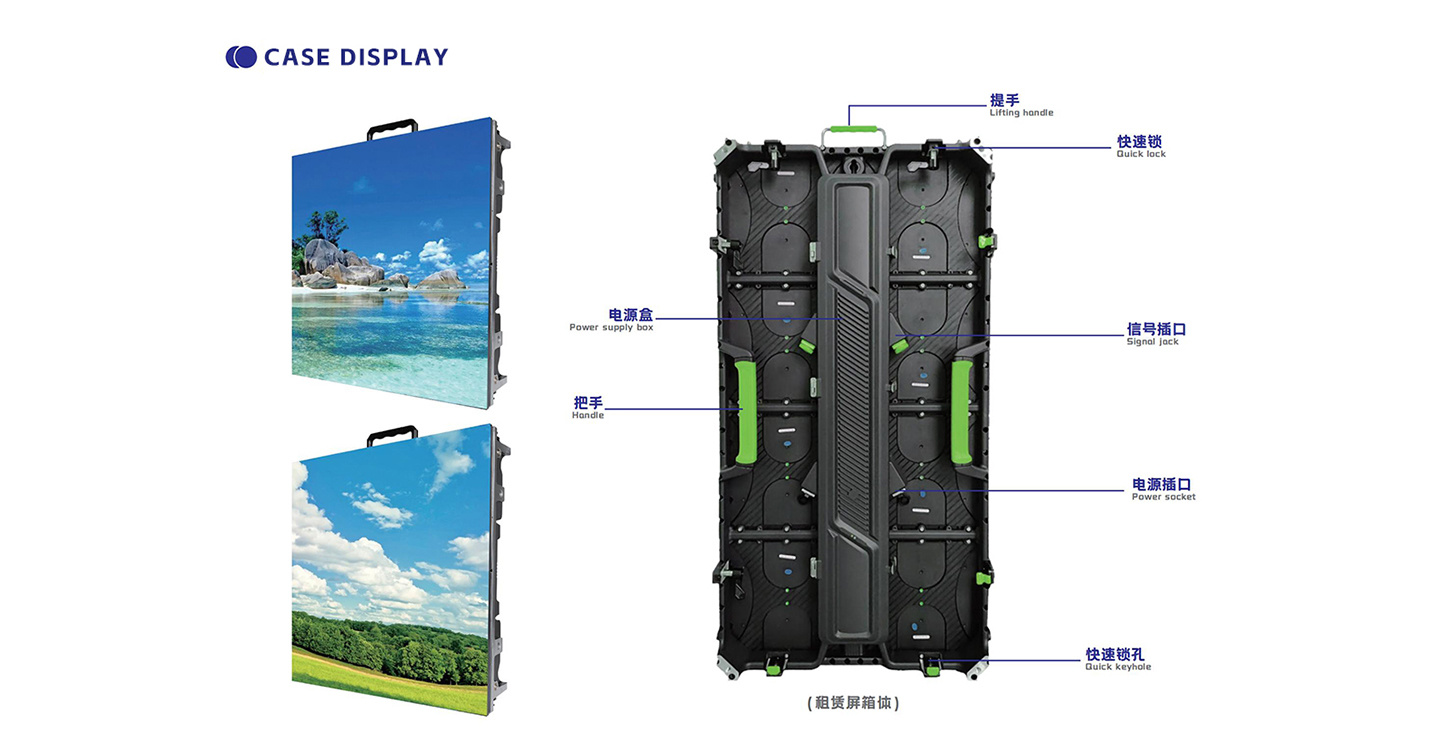

Vertical viewing Angle130±10°Screen Thickness ≤85cm Screen Weight ≤20kg/m² ≤15kg/m² ≤20kg/m² ≤20kg/m² ≤20kg/m² ≤26kg/m² ≤26kg/m² Operating Voltage AC110v~240V (50~60Hz) Average Power Consumption 300w/m² 300w/m² 300w/m² 400w/m² 400w/m² Maximum Power Consumption 800w/m² Driving Device Constant Current Drive Gray level 256RGB,total 65536 Display Color 16.7M Grayscale Calibration Software-Adjustable 100-Level Grayscale Frame Rate ≥60Hz Refresh Rate ≥1920Hz/≥3840Hz LED Lifespan ≥100,000 hours Mean Trouble-Free Operation Time ≥10,000 hours Operating temperature range (℃) -20~60℃ Storage temperature range (° C) -30~75℃ Signal Interface HUB75 IP Rating IP43 IP43 IP43 IP65 IP65 Front Side IP65 Front Side IP65 *RENTAL CABINET DESTAILS
*RENTAL SCREEN FEATURES
Honor&Certification
