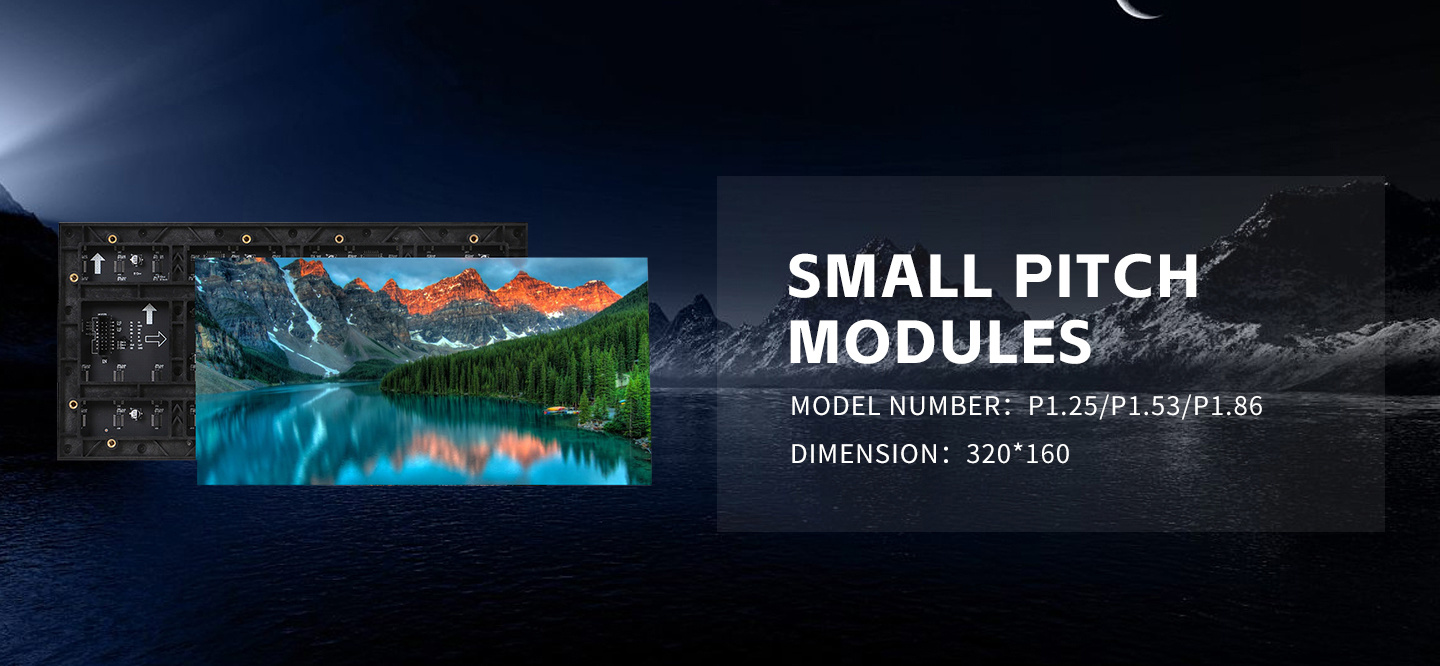

Small Pitch Full Color Modules
All kinds of conference rooms, lecture halls, high-end exhibition halls, security monitoring, radio and television studios and other application places
- Commodity name： Small Pitch Full Color Modules
Keyword:
Small Pitch Full Color Modules
- PRODUCT DESCRIPTION
-
Giantbull Small Pitch Module series Model/Type P1.25 P1.53 P1.86 Pixel Configuration 1R1G1B Pixel Pitch 1.25mm 1.53mm 1.86mm Pixel Density (Dots/m²) 640000 422500 288906 Lamp size SMD1010 SMD1212 SMD1515 Structural Features LED and Driver Integrated Design Driving Method(Constant Current Drive) 1/64s 1/52s 1/43s Module Size 320*160mm Module Resolution (Dots) 256*128=32768 208*104=21632 172*86=14792 Box material 640*480mm Die-cast aluminum case White Balance Brightness 450cd/m²-600cd/m²
Brightness Uniformity Brightness Difference Between Pixels ±2.5% Optimal Viewing Distance 1-30m Optimal Viewing Angle Horizontal viewing Angle 120±10°，
Vertical viewing Angle120±10°Screen Thickness ≤100cm Screen Weight ≤25.5kg/m² Operating Voltage AC110~240V (50~60Hz) Average Power Consumption 400w/m² 300w/m² 300w/m² Maximum Power Consumption 800w/m² 600w/m² 600w/m² Gray level 256RGB,total 65536 Grayscale Calibration Software-Adjustable 100-Level Grayscale Frame Rate ≥60Hz Refresh Rate ≥3840Hz LED Lifespan ≥100,000 hours Operating temperature range (℃) -40~50℃ Storage temperature range (° C) -50~85℃ Relative Humidity (RH) 10%~95%RH Operating Environment Indoor *INDOOR MODULE FEATURES
*INDOOR FIXED SCREEN
Honor&Certification
Get A Quote
Note: Please leave your email address, our professionals will contact you as soon as possible!
